4MP Vehicle License Plate Capture IP Camera with 2.7-13.5mm Motorized Lens(IPC2324SB-DZK-I0)

UniviewSKU: IPC2324SB-DZK-I0

Price:
Sale price$259.00 USD
Stock:
Re-stocking soon

Description

IPC664-LPR is a 4MP bullet type vandal-proof camera designed for vehicle license plate capture purpose. Powered by AI (Artificial Intelligent) deep learning technology, this camera can accurately detect vehicle and then automatically take a picture with clear license plate image. The vehicle picture can be stored in local SD card, or upload to FTP server.

Outstanding Features

• High accuracy vehicle license plate detection powered by AI deep learning technology;
• 4 Megapixels (2688×1520) resolution @30fps, H.265/H.264 compression;
• 2.7-13.5mm motorized lens;
• 120dB true WDR; Excellent low light performance;
• Alarm:1 in/1 out, Audio: 1 in/1 out;
• Smart IR, up to 50m (164ft) IR distance;
• Supports 256GB Micro SD card;
• PoE, IK10, IP67;

Applications

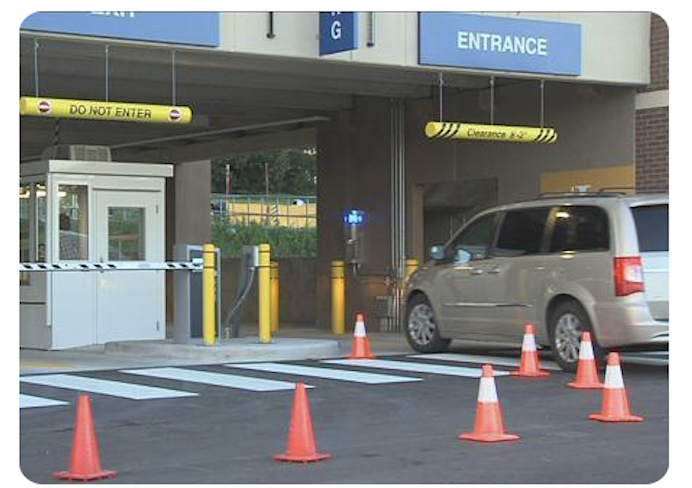

Gas station, parking lot, community, business campus, etc.

 IPC664AI-LPR (902.1KB)

Camera
Sensor 1/3", 4.0megapixel, progressive scan, CMOS
Lens 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens
DORI Distance Lens (mm) Detect (m) Observe (m) Recognize (m) Identify (m)
2.7 60.8 24.3 12.2 6.1
13.5 303.8 121.5 60.8 30.4
Angle of view (H) 98.26°~ 31.35°
Angle of View (V) 54.76°~ 18.55°
Angle of View (O) 127.74°~36.99°
Adjustment angle Pan: 0° ~ 360°
Shutter Auto/Manual, shutter time: 1 ~ 1/100000s
Minimum Illumination Colour: 0.002Lux (F1.2, AGC ON)
0Lux with IR on
Day/Night IR-cut filter with auto switch (ICR)
S/N >56 dB
IR Range Up to 50m (164ft) IR range
Wavelength 850nm
IR On/Off Control Auto/Manual
Defog Digital Defog
WDR 120dB
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 code profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 25fps;4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 25fps; 1080P  (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps;  CIF(352*288), Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
Video Bit Rate 128 Kbps~16 Mbps
9:16 Corridor Mode Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Up to 8 areas
Motion Detection Up to 4 areas
White Balance Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Audio
Audio Compression G.711
Two-way Audio Supported
Suppression Supported
Sampling Rate 8KHZ
Storage
Edge Storage Micro SD, up to 256GB
Network Storage ANR, NAS(NFS)
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x,  SNMP, QoS
Compatible Integration ONVIF (Profile S, Profile G, Profile T), API
EZStation  EZView  EZLive
Client
Web Browser Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+
Interface
Audio I/O 1 Input: impedance 35kΩ; amplitude 2V [p-p]
1 Output: impedance 600Ω; amplitude 2V [p-p]
Alarm I/O 01-Jan
Network 1 RJ45 10M/100M Base-TX Ethernet
Certifications
Certifications CE: EN 60950-1
UL: UL60950-1  FCC: FCC Part 15
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power consumption: Max 8.5W
Dimensions (L × W × H) 245.4 × 85.4 × 86.4mm (9.7” × 3.4” × 3.4”)
Net Weight 0.92kg (2.03lb)
Material Metal
Working Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Strorage Environment -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Surge Protection 6KV
Ingress Protection IP67
Vandal Resistant IK10
Reset Button N/A
IPC664AI-LPR

Outstanding Features

Accurate Alarm for Humans/Vehicles | AI Deep Learning | 120dB WDR | 50m IR Distance
FEATURES

Outstanding Features

●High accuracy vehicle license plate detection powered by AI deep learning technology;
●4 Megapixels (2688x1520) resolution @30fps, H.265/H.264 compression;
●2.7-13.5mm motorized lens;
●120dB true WDR; Excellent low light performance;
●Alarm:1 in/1 out, Audio: 1 in/1 out;
●Smart IR, up to 50m (164ft) IR distance;
●Supports 256GB Micro SD card;
●PoE, IK10, IP67

Applications

Entrance
Highway
Road
