Description
- High quality imaging with 4 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology (Color: 0.003 Lux @ F1.4)
- Clear imaging against strong back light due to 120 dB trueWDR technology
- Efficient H.265+ compression technology
- False alarm reduction through human and vehicle target classification based on deep learning
- Active deterrence with strobe light and audio speaker (custom sound through WEB)
- Provides real-time security via built-in two-way audio
- Water and dust resistant (IP67)
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.4, AGC ON) |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | ICR Cut |
| Angle Adjustment | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
|
Lens Type & FOV |
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123°4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98°6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62° |
| Aperture | F1.4 |
| Lens Mount | M12 |
| Illuminator | |
| IR Range | Up to 100ft |
| Wavelength | 850 nm |
| Smart Supplement Light | Yes |
| Visual Alarm | Yes |
| Video | |
| Max. Resolution | 2688 × 1520 |
|
Main Stream |
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream |
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
|
Video Compression |
Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Video Bit Rate | 32 Kbps to 8 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | Yes |
| Region of Interest (ROI) | 1 fixed region for each stream |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3 |
| Audio Bit Rate | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Network | |
| Simultaneous Live View | Up to 6 channels |
| API |
|
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Smooth Streaming | Yes |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
|
Security |
Password protection, complicated password, HTTPS encryption, IP address filter,Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
|
Network Storage |
microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), autonetwork replenishment (ANR)Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Image | |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balanceadjustable by client software or web browser |
| Interface | |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes, Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
|
Audio |
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7KΩ, interface type: non-equilibrium;1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium;1 built-in speaker, 1 built-in microphone |

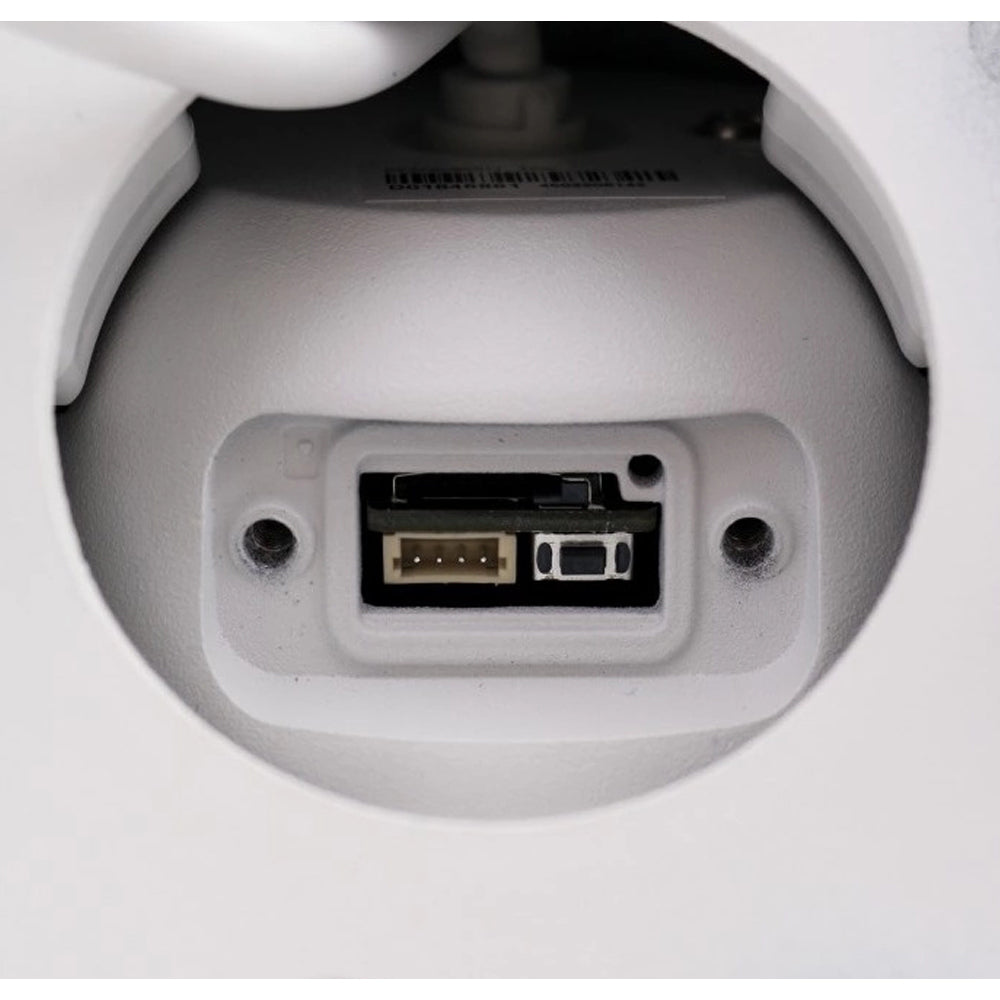

| On-board Storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Hardware Reset | Yes |

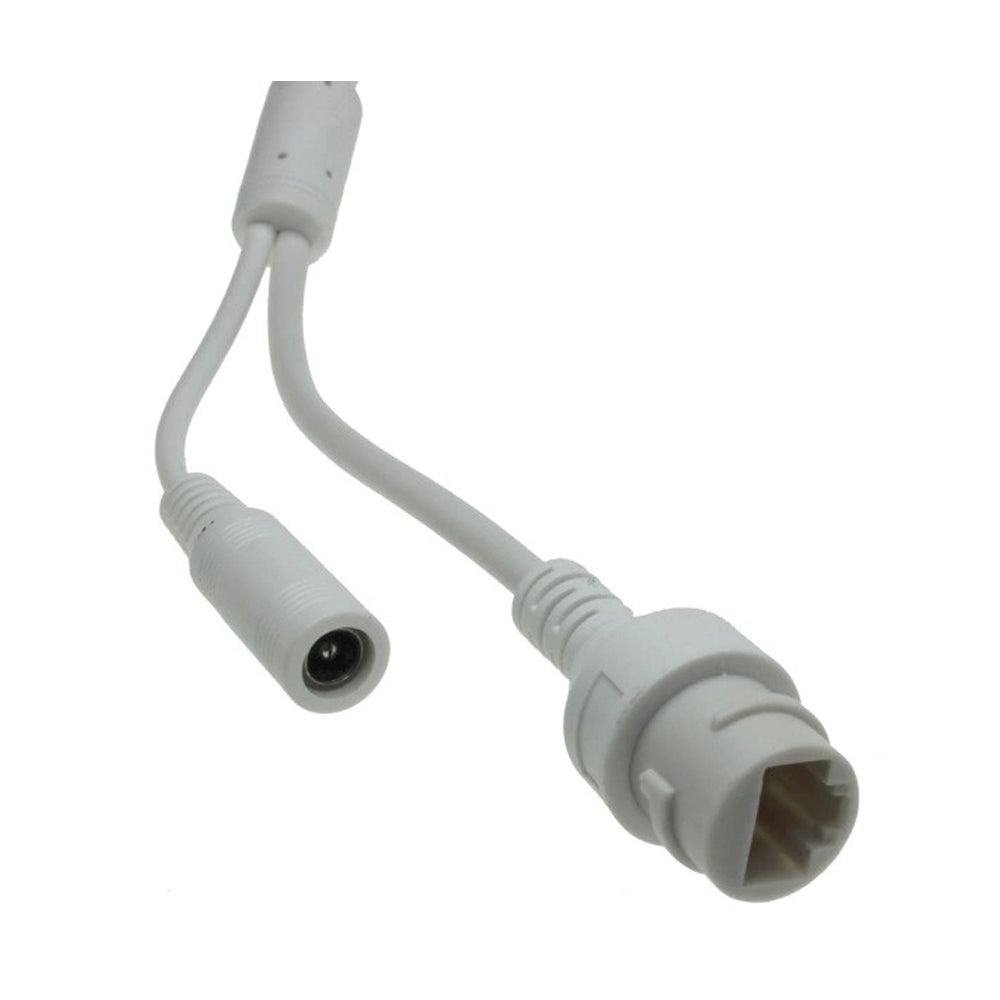

| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Intelligent (Traditional Algorithm) | |
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Intelligent (Deep Learning Algorithm) | |
| Face Capture | Yes |
| Linkage Method | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
| General | |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and OperatingConditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC, 0.65 A, max. 7.8 WPoE: (802.3af, 36 V to 57 V), 0.25A to 0.15 A, max. 8.8 W |
| Power Interface | 12 VDC ± 25%, reverse polarity protection; PoE: 802.3af, Class 3 |
| Camera Dimension | Ø138.3 × 124.5 mm (Ø5.4″ × 4.9″) |
| Package Dimension | 170 × 170 × 150 mm (6.9" × 6.9" × 5.9") |
| Camera Weight | Approx. 825 g (1.8 lb.) |
| With Package Weight | Approx. 1120 g (2.4 lb.) |
