ALL OF OUR SECURITY CAMERAS INCLUDE 3 YEAR WARRANTY
WHY PURCHASE FROM US?
*3 Years hassle free warranty
*Trusted Top Rated Plus Seller
*We provide after sales support unlike most other sellers. In the event you have any problems even after the 30 day return policy, we will assist with getting the issue resolved.

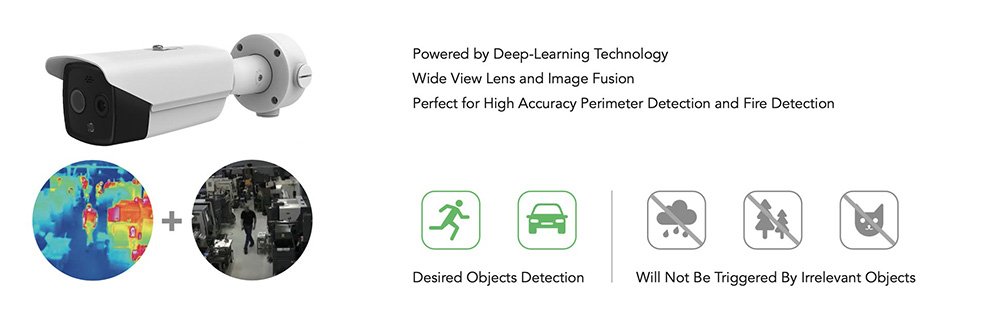

This is a deep learning thermal + optical Bi-spectrum network bullet camera with temperature and fire detection, perfect for perimeter detection. It also comes with strobe light and audio alarm.
Outstanding Features
• Powered by deep learning technology
• Support thermal + optical Bi-spectrum
• Built-in temperature and fire detection function
• Come with strobe light and audio alarm
• Thermal view: VOx UFPA 160×120 pixels, 3/6mm lens
• Optical view: 4MP Resolution (2688×1520), 132ft IR, 4mm lens
• Support Bi-spectrum Image Fusion, picture-in-picture, VCA analysis
Applications
This thermal Bi-spectrum network camera is perfect to be used in small farm, car dealership, factory, museum entrance and small enterprise where need fire detection and perimeter detection.
Why use Thermal IP Camera?
Reduce false alarms rate under severe weather conditions.
Enable Advanced Fire detection and quantify thermal and optical image with precise non-contact temperature
measurement.
See what happens in complete darkness.
Outstanding Features
Strobe Light and Audio Alarm | Built-in Temperature/Fire Detection | Perfect for Perimeter
Detection | Thermal + Optical Image Fusion
| Thermal Module |
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays 123 |
| Max. Resolution |
160 × 120 (the resolution of output image is 320 × 240) |
| Pixel Interval |
17μm |
| Response Waveband |
8 μm to 14 μm |
| NETD (Noise Equivalent Temperature Difference) |
≤ 40 mk (@25 °C,F# = 1.1) |
| Lens (Focal Length) |
3.1 mm / 6.2mm |
| IFOV |
5.48 mrad / 2.74 mrad |
| Field of View |
50° × 37.2° (H × V) / 25° × 18.7° (H × V) |
| Min. Focusing Distance |
0.2 m / 0.6 m |
| Aperture |
F 1.1 |
| Optical Module |
| Max. Image Resolution |
2688 × 1520 (4MP) |
| Image Sensor |
1/2.7″ Progressive Scan CMOS |
| Min. Illumination |
Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON) |
| Shutter Speed |
1 s to 1/100,000 s |
| Lens (Focal Length) |
4 mm |
| Field of View |
84° × 44.8° (H × V) / 39.42° × 22.14° (H × V) |
| WDR |
120 dB |
| Day & Night |
IR cut filter with auto switch |
| Image Function |
| Bi-spectrum Image Fusion |
Fusion view of thermal view and overlaid details of the optical channel |
| Picture in Picture |
Combines details of thermal and optical image PIP, overlay thermal image on opticalimage |
| Smart Function |
| VCA (Video Content Analysis) |
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total. |
| Temperature Measurement |
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line). |
| Temperature Range |
-20 °C to + 150 °C (-4 °F to + 302°F) |
| Temperature Accuracy |
± 8 °C (± 14.4 °F) |
| Fire Detection |
Dynamic fire point detection, up to 10 fire points detectable. |
| Infrared |
| IR Distance |
Up to 40 m |
| IR Intensity and Angle |
Automatically adjusted |
| Network |
| Main Stream |
Visible Light: 50Hz: 25fps (2688 × 1520), 25fps (1920 × 1080), 25fps (1280 × 720)Visible Light: 60Hz: 30fps (2688 × 1520), 30fps (1920 × 1080), 30fps (1280 × 720)Thermal: 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240 |
| Sub-stream |
Visible Light: 50Hz: 25fps (704 × 576), 25fps (352 × 288), 25fps (176 × 144)Visible Light: 60Hz: 30fps (704 × 480), 30fps (352 × 240), 30fps (176 × 120)Thermal: 704 × 576, 352 × 288, 320 × 240 |
| Video Compression |
H.265/H.264/MJPEG |
| Audio Compression |
G.711u/G.711a/G.722.1/MP2L2/G.726/PCM |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE |
| Simultaneous Live View |
Up to 20 |
| User/Host Level |
Up to 32 users, 3 levels: Administrator, Operator, User |
| Security Measures |
User authentication (ID and PW), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering |
| Integration |
| Alarm Input |
2-ch inputs (0-5 VDC) |
| Alarm Output |
2-ch relay outputs, alarm response actions configurable |
| Alarm Action |
SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/white light alarm |
| Audio Input |
1, 3.5 mm Mic in/Line in interface. Line input: 2 to 2.4 V [p-p], output impedance: 1 KΩ± 10% |
| Audio Output |
Linear level, impedance: 600 Ω |
| Reset |
1, Reset Button |
| Communication Interface |
1, RJ45 10M/100M self-adaptive Ethernet interface. 1, RS-485 interface |
| SD Memory Card |
Built-in micro SD card slot, support Micro SD/SDHC/SDXC card (up to 128 GB) Supports manual/alarm recording |
| Analog Video Output |
1.0 V [p-p]/75 Ω, PAL/NTSC |
| Application Programming |
Open-ended API, support ISAPI, HIKVISION SDK and third-party management platform |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
IE9+, Chrome 31-44, Firefox 30-51, Safari 5.02+(mac) |
| General |
| Menu language |
32 languagesEnglish, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
| Power |
12 VDC ± 20%, two-core terminal blockPoE (802.3af, class 3) |
| Power Consumption |
12 VDC ± 20%: 0.65 A, max. 7.5 WPoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, max. 8 W |
| Working Temperature/Humidity |
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)Humidity: 95% or less |
| Protection Level |
IP66 StandardTVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions |
358.3 mm × 113.5 mm × 115.2 mm (14.10″ × 4.47″ × 4.53″) |
| Weight |
Approx. 1.76 kg (3.88 lb) |
|
