Description
- 8MP 4K H.265 3.6MM】3.6mm fixed lens offers wide Field of View. Sony IMX335 low light CMOS sensor output 8 Megapixels (3840 x 2160P) superior image quality. Supports the advanced H.265 video compression which save up to 70% storage space
- 【VIDEO & AUDIO】Built-in microphone and record video in NVR and remote monitoring from mobile App.

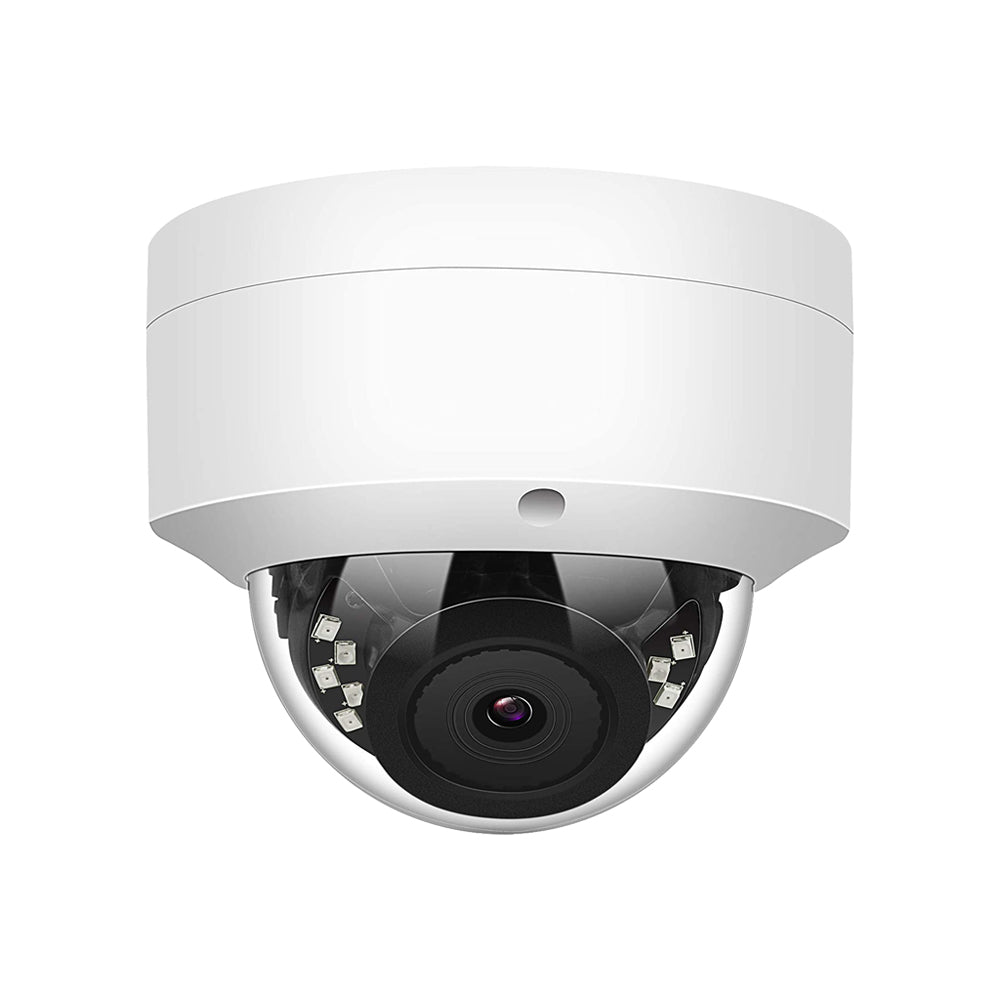

- 【VANDAL-PROOF CAMERA】Support IP66 waterproof standard. High quality metal housing enables both indoor and outdoor use for home and commercial surveillance security system with quick and easy installation.
- 【PLUG N PLAY】Plug and play, no additional configuration is required. Work with LINOVISION 8MP PoE NVR, and it can also be added with most NVR from Hikvision, ONWOTE, GW security, Laview and so on.
- 【24/7 US LOCAL + GLOBAL TECH SUPPORT】This product comes with 3-year warranty, 24/7 Life-time US LOCAL + GLOBAL Tech Support. Free system consultant service. Just feel free to contact us here. Ready and willing to help in anytime.
Specifications
|
Camera |
|
|
Image Sensor |
1/2.5" 8MP Sony IMX274 CMOS |
|
Effective Pixels |
3864 (H) × 2202 (V) approx. 8.51M pixels |
|
Electronic Shutter |
AUTO, AUTO, 1/25s ~ 1/100000s |
|
Min. Illumination |
0.01Lux@F1.2(AGC ON), 0Lux IR on |
|
Day/Night |
Auto/Color/(B/W)/Timing |
|
WDR |
Digital WDR |
|
White Balance |
Auto/Manual |
|
AGC/BLC |
Support |
|
DNR |
2D/3D DNR |
|
Other |
AGC,2/3 DNR, Motion Detection, Privacy Mask, Mirror, Flip, Roate, RIO,HLC,BLC, OSD overlay |
|
Encode |
|
|
Embedded Solution |
Hi3516A |
|
Video Standard |
H.264/H.265 |
|
Video Resolution |
MainStream:15fps@8MP(3840x2160), 30fps@6MP(3072x2048),5MP(2592x1520),3MP/1080P/720P |
|
Video Bitrates |
Sub stream: 720x480/VGA(640x480)/360P/QVGA@30fps |
|
Audio Standard |
512Kbps - 12Mbps, VBR/CBR |
|
IR Led |
|
|
IR Led |
18pcs SMD IR Led, IR distance up to 100ft |
|
Lens |
|
|
Focal length |
3.6mm fixed lens |
|
Audio |
|
|
Audio |
Built-in Microphone |
|
Network Services |
|
|
Protocol |
HTTP/RTSP/FTP/NFS/SMTP/DHCP/NTP/RTMP, etc. |
|
P2P |
Yes |
|
Web |
IE , Firefox (32bit ESR) |
|
3rd Party NVR supported |
Hikvision, LTS, HINO |
|
ONVIF |
17.06 compatible |
|
General |
|
|
Network Port |
1-RJ45, 100Mbps, POE optional |
|
Power Supply |
12 VDC ± 10% |
|
Power Consumption |
< 5 W |
|
Operating Temp. |
-30℃-(+60)℃, 10%-90%RH |
