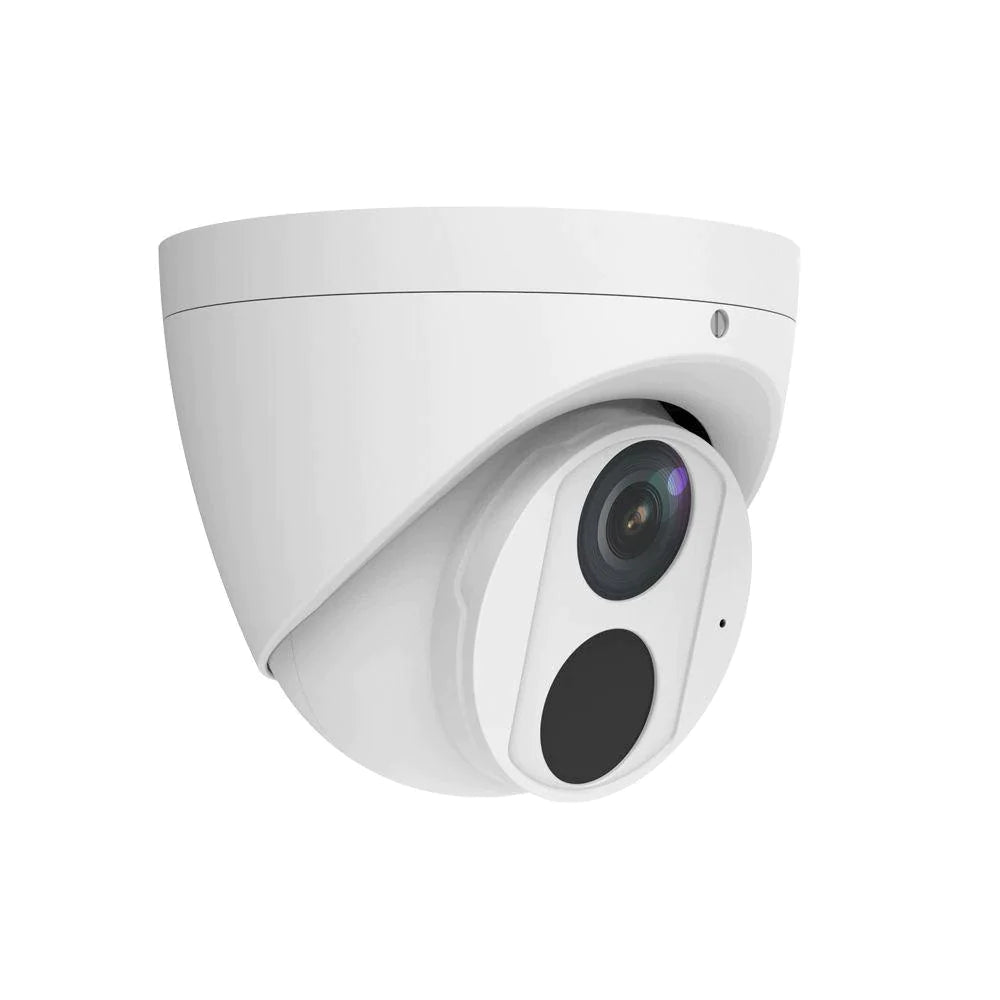

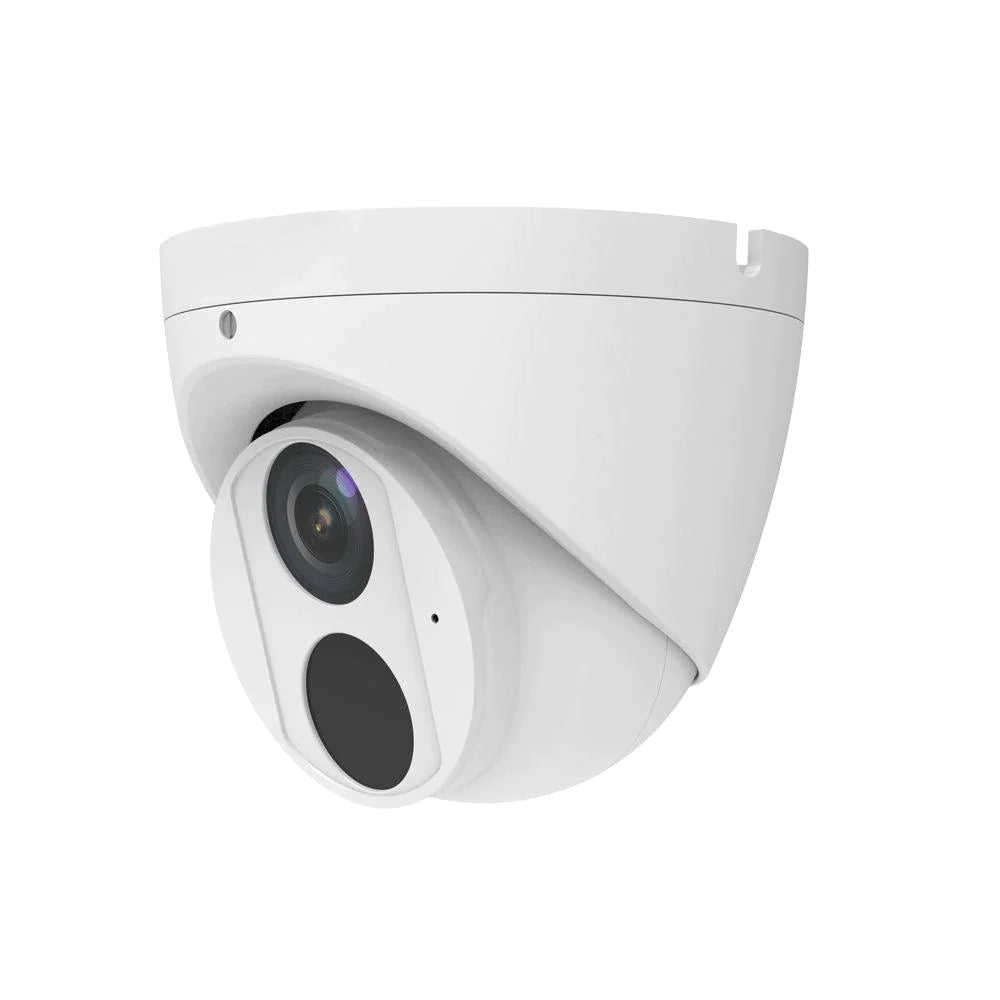

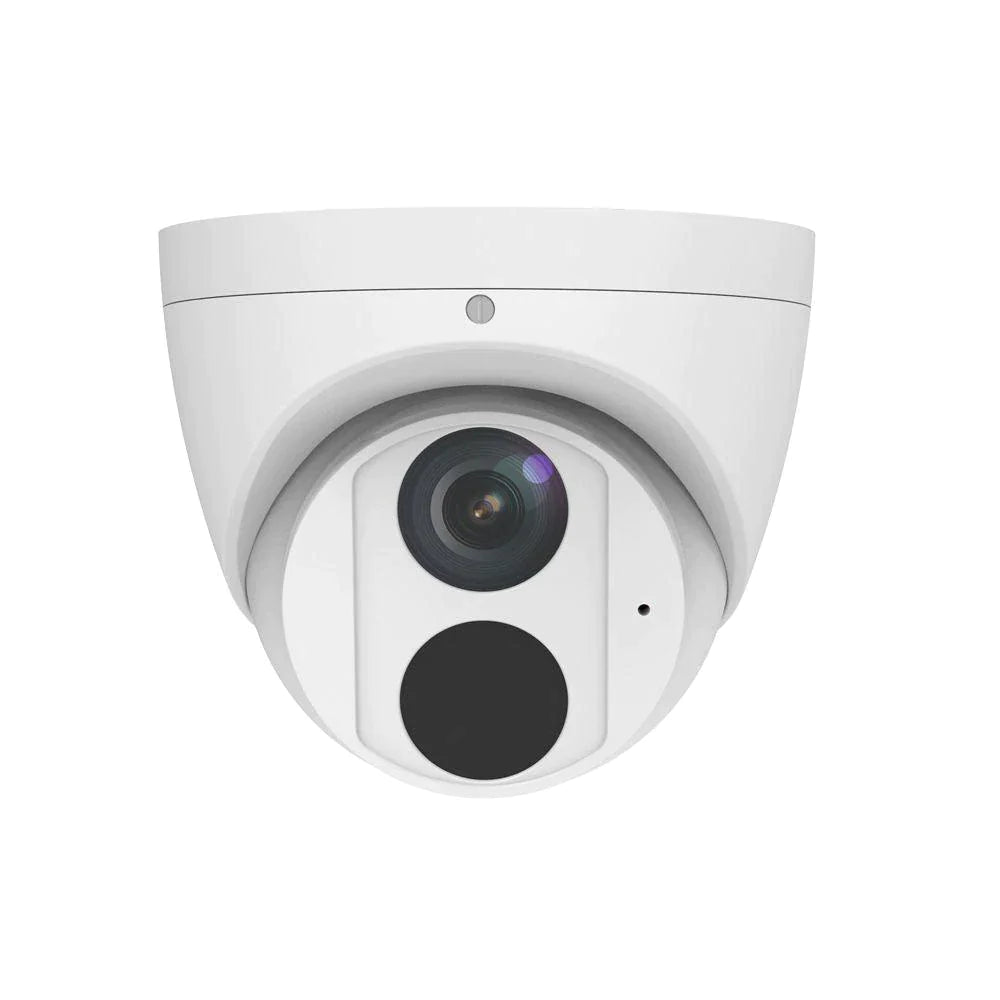

Description
- High quality image with 8MP
- Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
- Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,
- Accurately focus on human and, motor vehicle and non-motor vehicle2D/3D DNR
- 120dB true WDR technology enables clear image in strong light scene
- Support 9:16 Corridor Mode
- Smart IR, up to 30m (98ft) IR distance
- Built-in Mic
- Supports 256 G Micro SD card
- Ultra 265, H.265, H.264, MJPEGTriple streams
- ONVIF Conformance
- Wide temperature range: -30°C to 60°C (-22°F to 140°F)
- IP67
Specifications
|
Camera |
||||||||
|
Sensor |
1/2.7", 8.0 megapixel, progressive scan, CMOS |
|||||||
|
Lens |
2.8mm@F2.0 |
4.0mm@F2.0 |
||||||
|
DORI Distance |
Lens (mm) |
Detect (m) |
Observe (m) |
Recognize (m) |
Identify (m) |
|||
|
2.8 |
84.0 |
33.6 |
16.8 |
8.4 |
||||
|
4.0 |
120.0 |
48.0 |
24.0 |
12.0 |
||||
|
Angle of View (H) |
112.4° |
86.5° |
||||||
|
Angle of View (V) |
60.1° |
44.1° |
||||||
|
Angle of View (O) |
146.1° |
112.5° |
||||||
|
Adjustment angle |
Pan: 3° ~ 360° |
Tilt: 0° ~ 80° |
Rotate: 3° ~ 360° |
|||||
|
Shutter |
Auto/Manual, 1 ~ 1/100000s |
|||||||
|
Minimum Illumination |
Colour: 0.01Lux (F2.0, AGC ON) 0Lux with IR on |
|||||||
|
Digital Noise Reduction |
2D/3D DNR |
|||||||
|
Day/Night |
IR-cut filter with auto switch (ICR) |
|||||||
|
S/N |
>56dB |
|||||||
|
IR Range |
Up to 30m (98 ft) IR range |
|||||||
|
Wavelength |
850nm |
|||||||
|
IR On/Off Control |
Auto/Manual |
|||||||
|
Defog |
Digital Defog |
|||||||
|
WDR |
120dB |
|||||||
|
Video |
||||||||
|
Video Compression |
Ultra 265, H.265, H.264, MJPEG |
|||||||
|
H.264 code profile |
Baseline profile, Main profile, High profile |
|||||||
|
Frame Rate |
Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
|||||||
|
Video Bit Rate |
128 Kbps~16 Mbps |
|||||||
|
OSD |
Up to 8 OSDs |
|||||||
|
Privacy Mask |
Up to 4 areas |
|||||||
|
ROI |
Up to 8 areas |
|||||||
|
Motion Detection |
Up to 4 areas |
|||||||
|
Image |
||||||||
|
White Balance |
Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
|||||||
|
Smart IR |
Support |
|||||||
|
Flip |
Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
|||||||
|
Dewarping |
Supported |
|||||||
|
HLC |
Supported |
|||||||
|
BLC |
Supported |
|||||||
|
Audio |
||||||||
|
Audio Compression |
G.711 |
|||||||
|
Suppression |
Supported |
|||||||
|
Sampling Rate |
8KHZ |
|||||||
|
Storage |
||||||||
|
Edge Storage |
Micro SD, up to 256GB |
|||||||
|
Network Storage |
ANR |
|||||||
|
Intelligent |
||||||||
|
Smart Intrusion Prevention |
Line crossing detection, Intrusion detection, Leave area detection; |
|||||||
|
Events |
||||||||
|
Basic Detection |
Motion detection, tampering alarm, audio detection |
|||||||
|
General Function |
Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication |
|||||||
|
Network |
||||||||
|
Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, SNMP, HTTPS, SMTP, SSL |
|||||||
|
Compatible Integration |
ONVIF (Profile S, Profile G, Profile T), API |
|||||||
|
Client |
EZStation EZView EZLive |
|||||||
|
Web Browser |
Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below |
|||||||
|
Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
||||||||
|
Interface |
||||||||
|
Network |
1 RJ45 10M/100M Base-TX Ethernet |
|||||||
|
Built-in Mic |
Supported |
|||||||
|
Certifications |
||||||||
|
Certifications |
CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
|||||||
|
General |
||||||||
|
Power |
DC 12V±25%, PoE (IEEE 802.3af) |
|||||||
|
Power consumption: Max 5.0W |
||||||||
|
Dimensions (L × W × H) |
Φ110.5 x 94.1mm (Φ4.4” x 3.7”) |
|||||||
|
Net Weight |
0.44kg (0.97lb) |
|||||||
|
Material |
Metal |
|||||||
|
Working Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
|
Strorage Environment |
-30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
|||||||
|
Surge Protection |
2KV |
|||||||
|
Ingress Protection |
IP67 |
|||||||
|
Reset Button |
N/A |
|||||||
