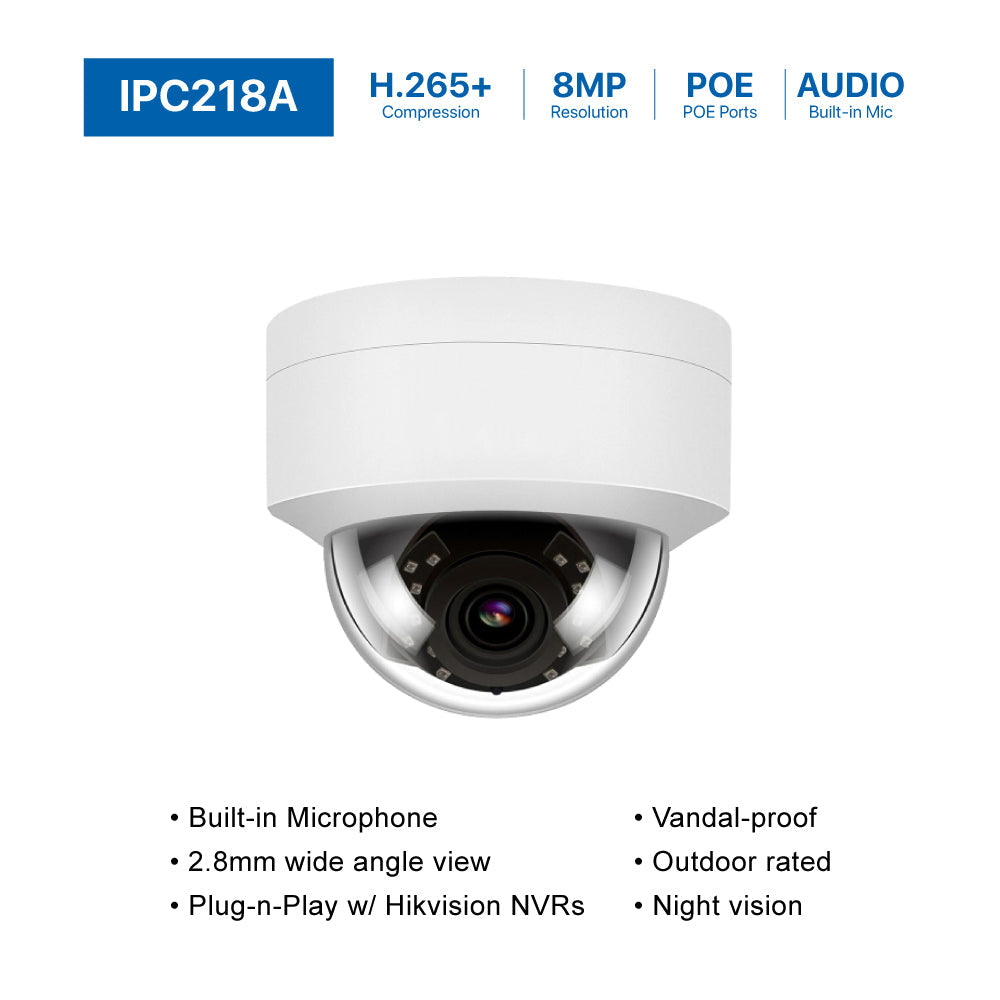

4K Ultra HD Video
- 110 ° wide angle view, fixed 2.8mm lens
- Sony IMX415 sensor for ultra HD day / night monitoring
- For both Indoor and Outdoor installations
- Built-in microphone for one-way audio

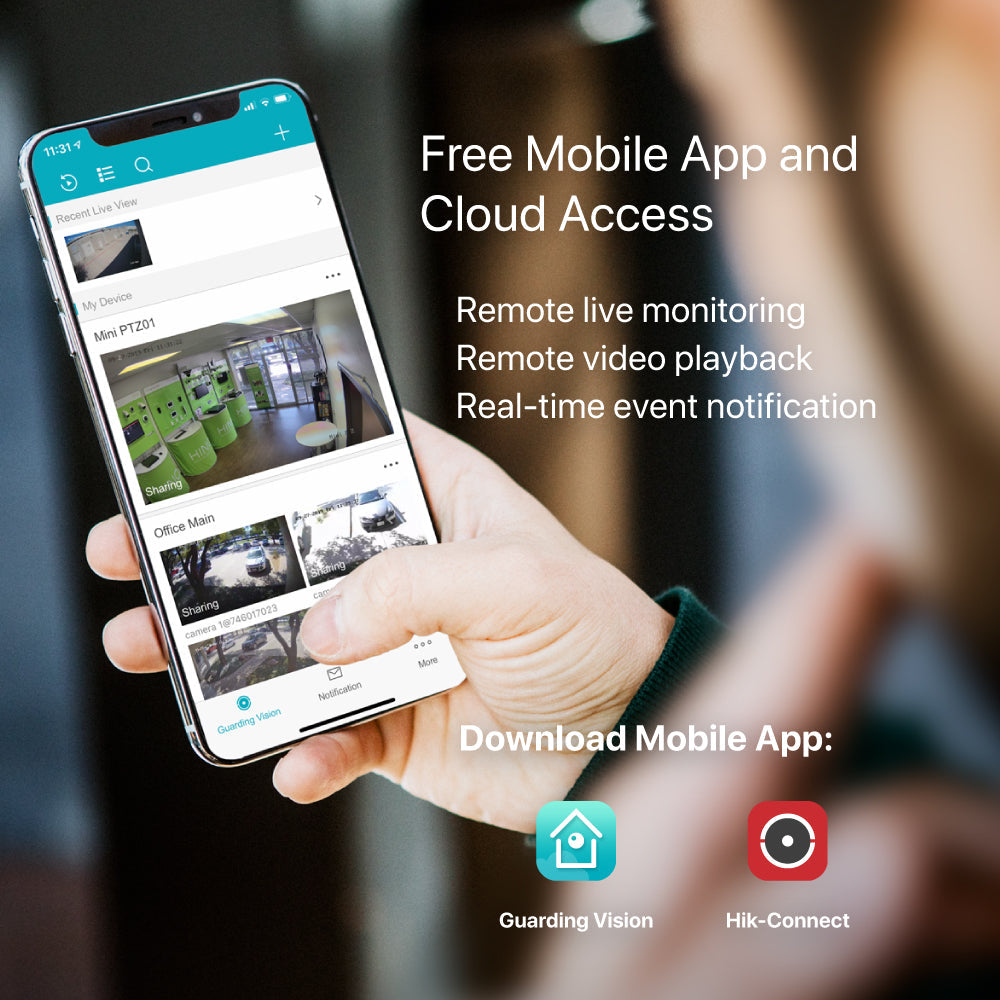

Remote Access from Anywhere
- Remote live view and playback
- Get instant notification on events
- Audio monitoring
- Easily and securely share access to other members
Smart Playback with Pre-installed 4GB HDD
- 4K Ultra HD recording
- Pre-installed 4TB surveillance grade HDD for local storage
- Up to 16ch synchronous playback
- Record and playback with audio
- Super efficient smart & event playback
3-axis Manual Adjustment
- Fits wall-mount and ceiling mount
- Designed for professional installations
- Full metal housing, vandal-proof
- IP67 Weatherproof
Application

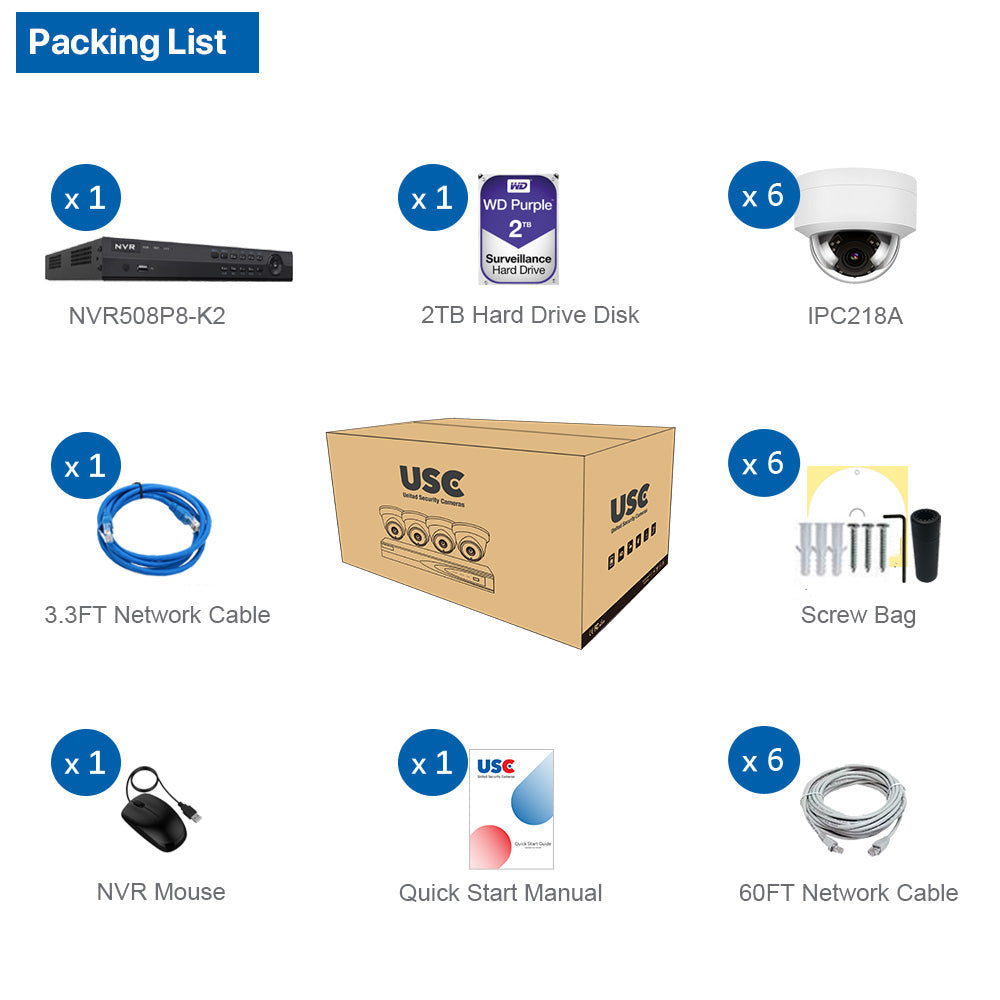

What's Included?

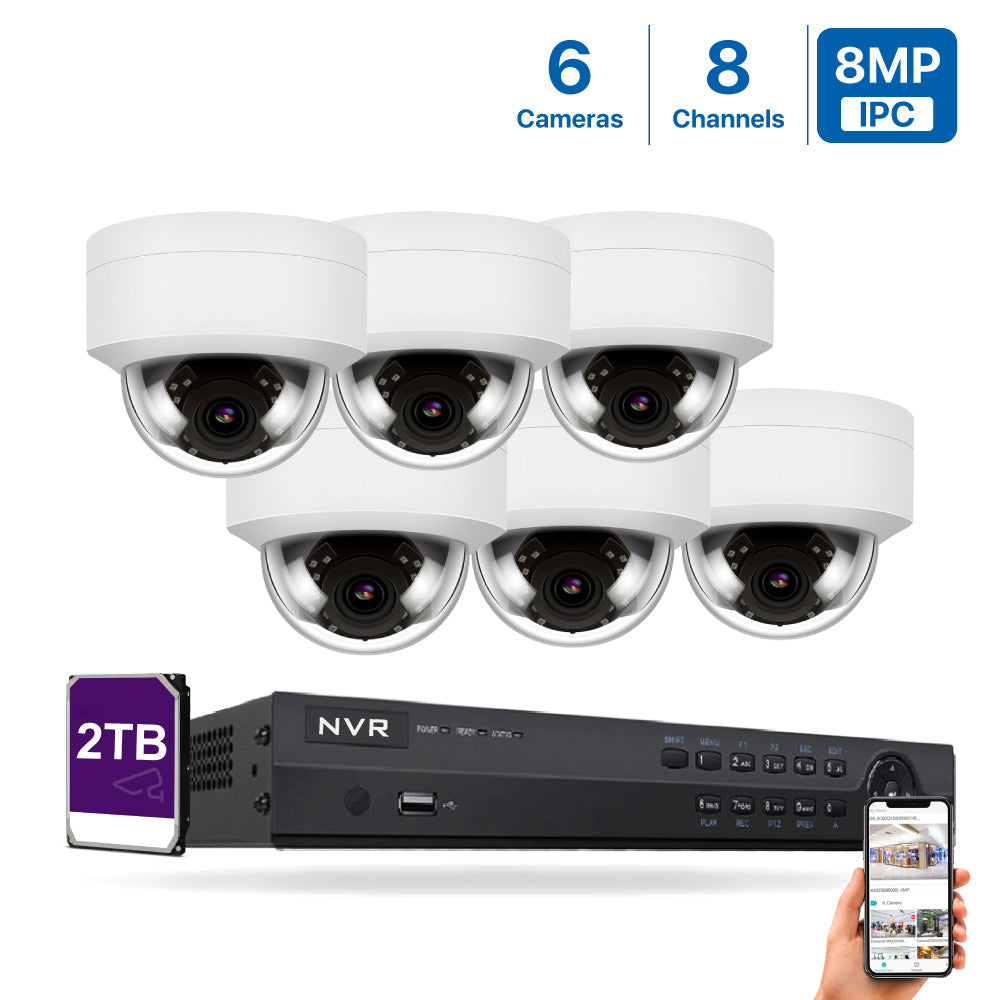

LINOVISION 8CH Security Camera System Specifications
| NVR Specifications | Camera Specifications | |||

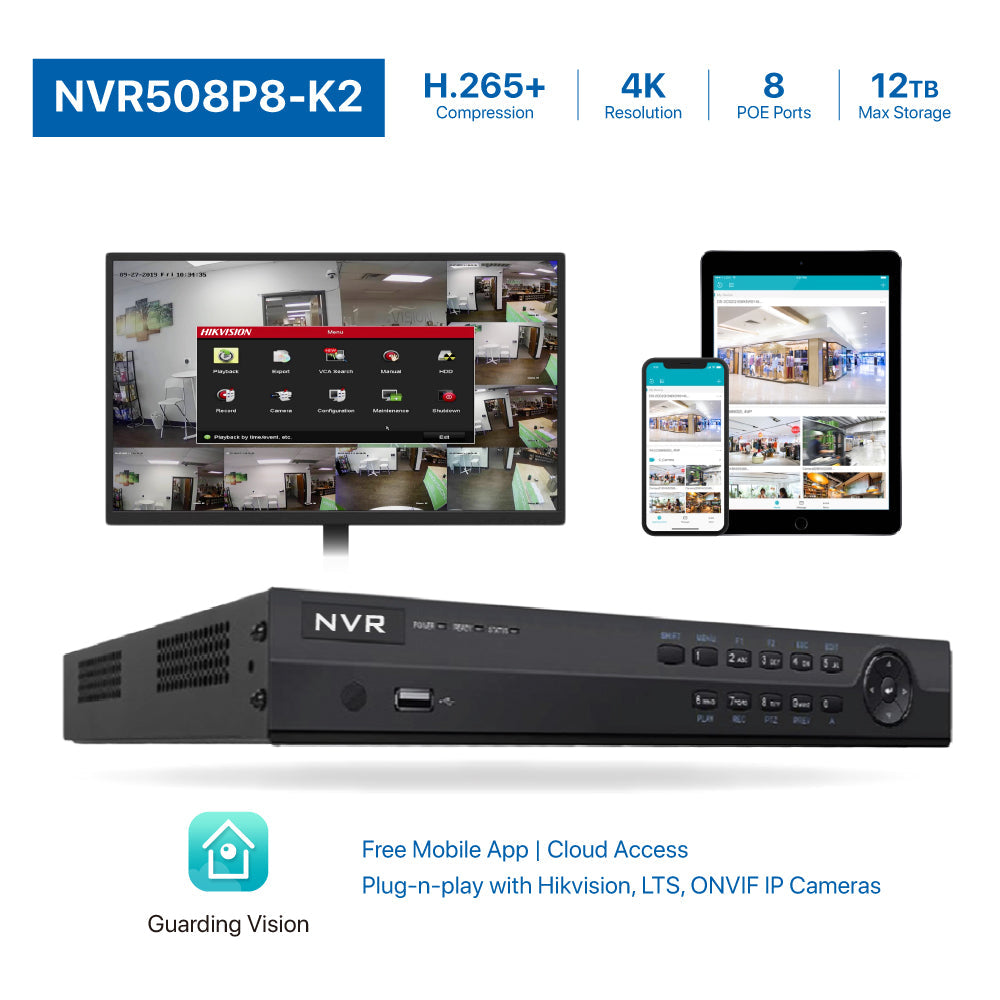

| NVR | 8ch H.265+ 4K PoE NVR | Camera Sensor | 1/2.8" Sony IMX415 Sensor | |
| Video Input | Up to 8 PoE IP Cameras, plug-n-play | Resolution | 20fps@8MP(3840x2160)/30fps@6MP(3072x2048)/5MP/3MP/1080P/720P | |
| Incoming Bandwidth | 80 Mbps | Lens | Fixed 2.8mm lens, wide view angle 110° | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/1080P | Night vision | 100ft, 18PCS IR LEDs | |
| Display Output | 1x HDMI at 4K (3840 × 2160)/2K/1080P; 1x VGA at 1080P | Min.Illumination | 0.01 Lux; 0 Lux with IR ON. | |
| Audio | 1-ch Audio input, 1-ch Audio output (RCA Interface) | Audio | Built-in Microphone (One way audio) | |
| Playback | 8-ch Synchronous Playback | AI Function | Human body / Vehicle Classification | |
| Storage Capacity | Pre-installed 2TB Surveillance Grade HDD. Max. 20TB capacity with 2 SATA Slots | Weatherproof | IP67 & IK10, Metal Housing | |
| Remote Access | WEB, PC based VMS Software, Mobile App (Guarding Vision, Hik- Connect) | Power Input | PoE or DC12V | |
| Dimension | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") | Power Consumption | Less than 8W | |
