Description

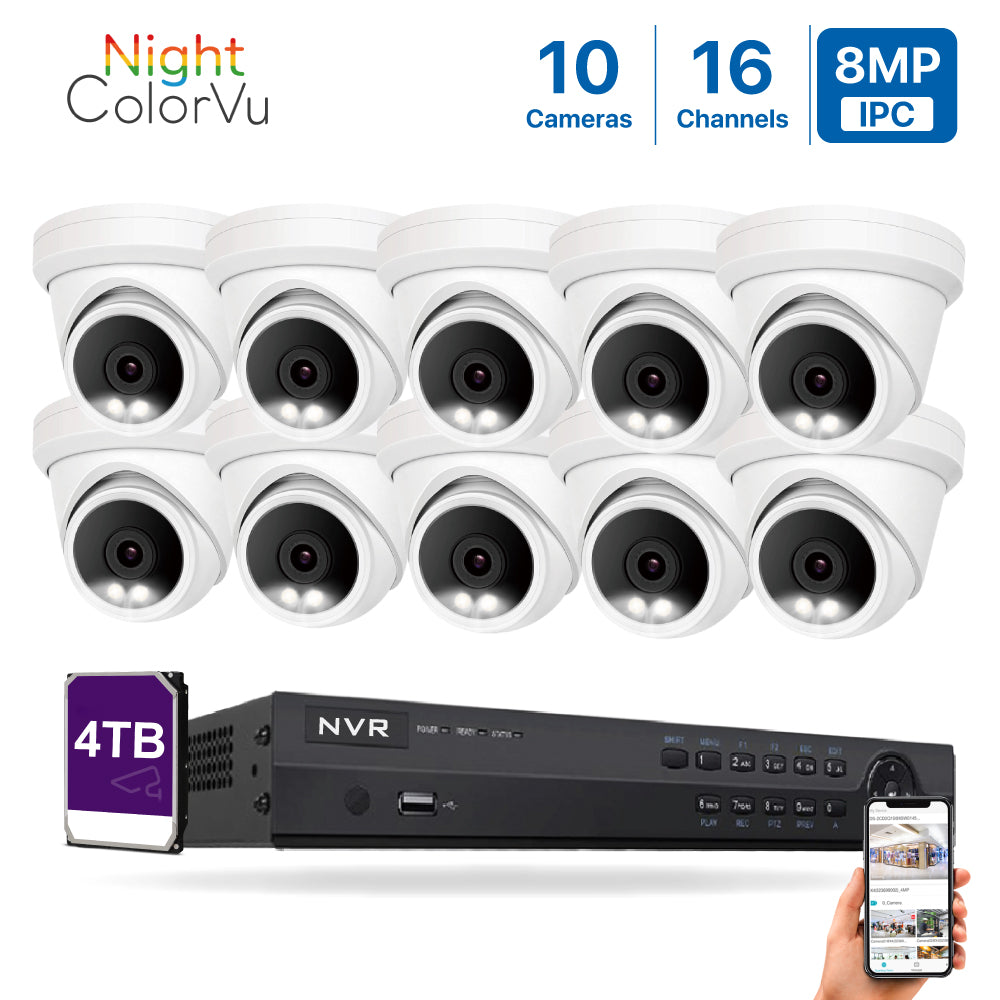

- 【4K 16CH ULTRA HD NVR WITH 4TB HDD】This NVR recorder features with 4K Ultra HD live viewing and recording, H.265+ video compression and most powerful functions, like 16 cameras’ synchronous playback, various video analytic detections and smart events search. It provides 16 independent PoE interfaces, transmission distance up to 900ft from POE cameras. It supports two hard drives with maximum storage capacity of 12TB (One 4TB HDD is pre-installed).
- 【8MP POE IP CAMERA WITH COLORFUL NIGHT VISION】This 4K ColorVu IP Turret camera delivers with colorful night view with 4K resolution max up to 3840 x 2160P. Equipped with 2 pcs soft & warm supplemental lights, it can enable clear and colorful image in low illumination (0.001Lux). Light distance up to 30m(100 ft). High quality mental housing enables both indoor and outdoor use for home and commercial surveillance security system with quick and easy installation.

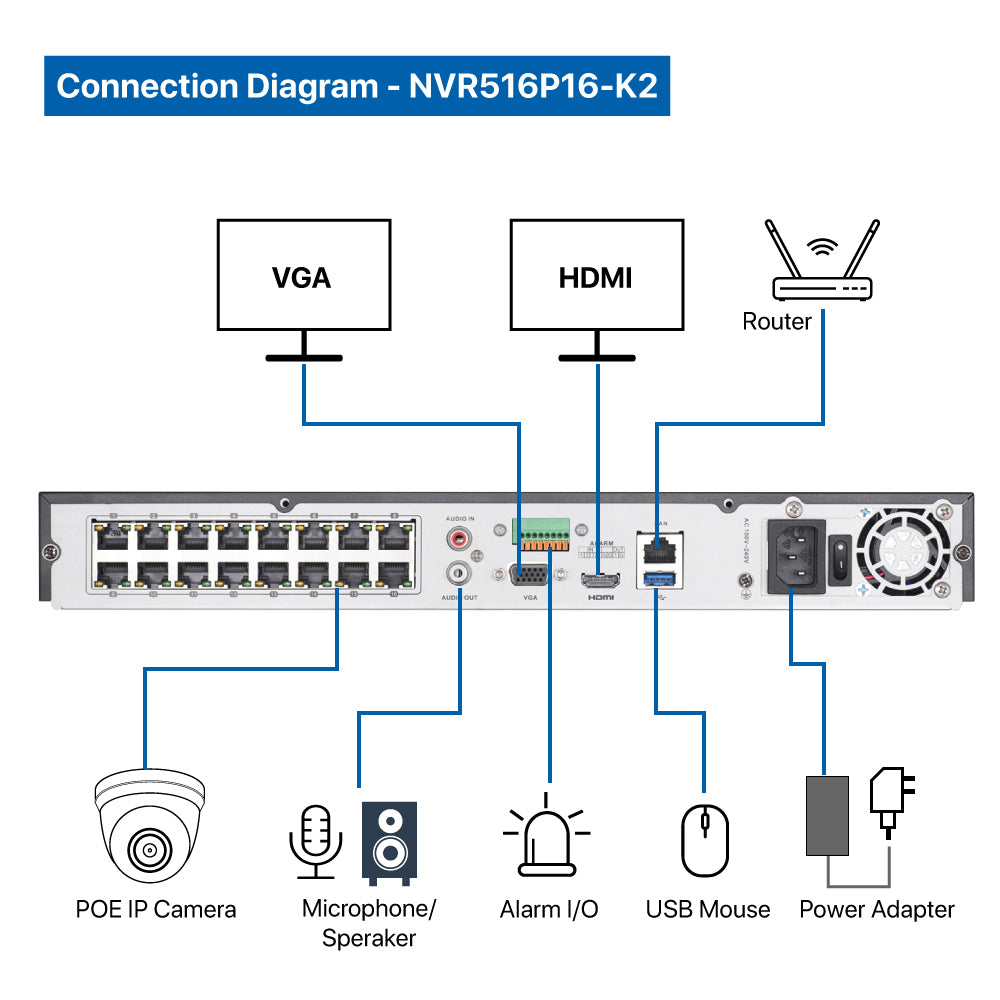

- 【PLUG-n-PLAY AND ONE OF THE BEST COMPATIBILITY】The connection of these POE IP cameras to NVR is plug-n-play, just connect one network cable from cameras to NVR, no configuration is required. The NVR also supports plug-n-play connection with Hikvision/LTS/HINO IP Cameras, and compatible to AXIS, Bosch, Samsung, Canon, Panasonic, Vivotek, Zavio and other ONVIF cameras.

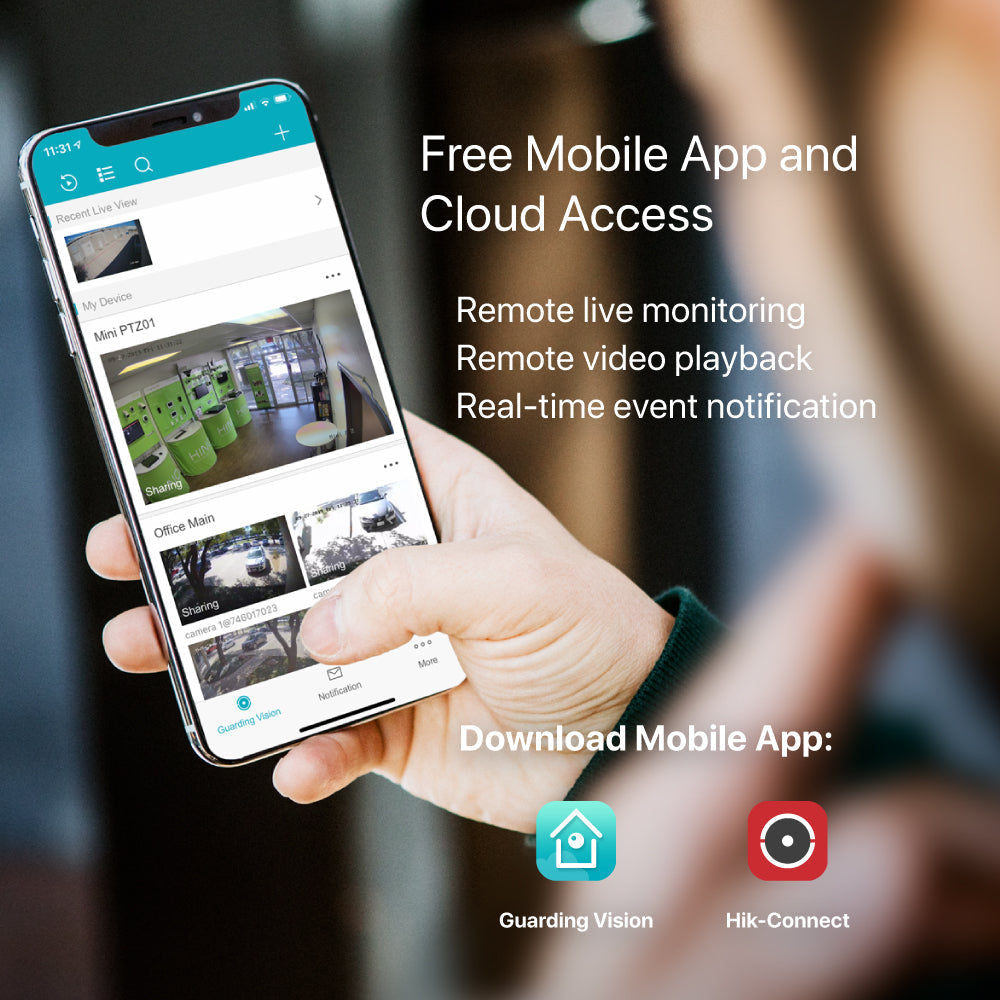

- 【FREE MOBILE APP WITH CLOUD】The system provides free mobile App for both Android and iOS which allow users to remote live view and remote playback videos from tens of different locations. It supports motion detection and notify events by email or Mobile App. User can also easily share cameras with controlled access privileges. The mobile APP name is Hik-Connect or Guarding Vision, which is proved to be one of the most friendly and reliable App in this industry.
- 【24/7 US LOCAL + GLOBAL TECHNICAL SUPPORT】With over 15 years in this industry, we understood that the biggest concern for any video security system is the reliability and customer support. We have technical support center in Dallas, TX and Asia, so we can actually offer 24/7 technical support service. This system comes with 3 years US local + global warranty and technical support, you can submit support ticket in our customer service portable and we will call you back quickly.

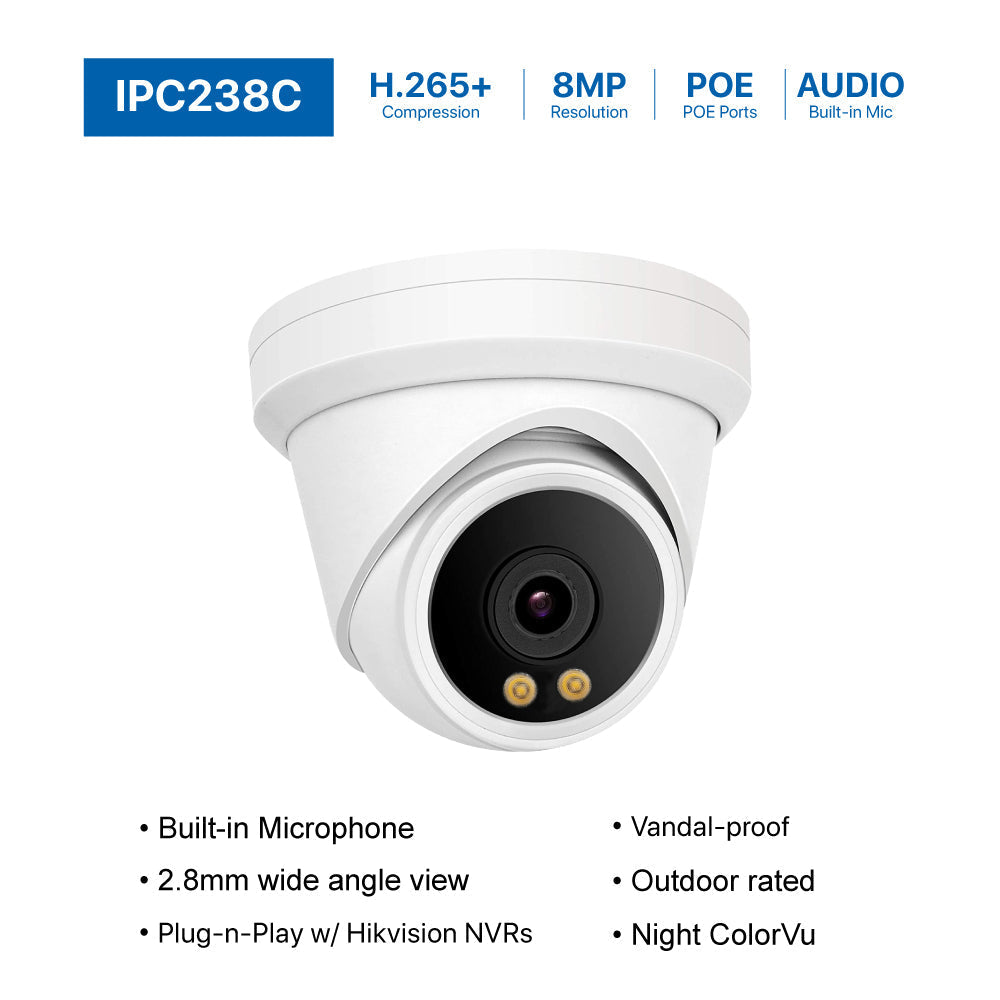

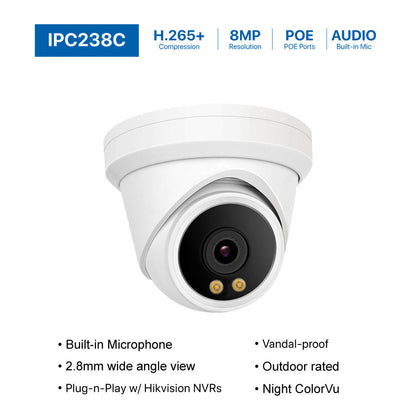

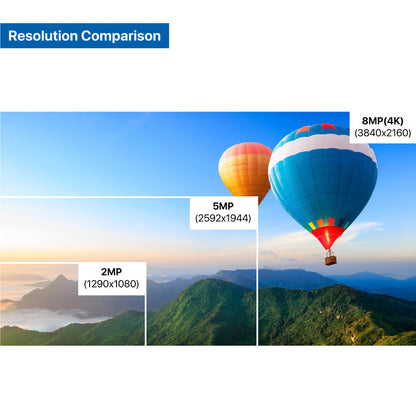

4K Ultra HD Video
- 110 ° wide angle view, fixed 2.8mm lens
- Sony IMX415 sensor for ultra HD day / night monitoring
- For both Indoor and Outdoor installations
- Built-in microphone for one-way audio
Remote Access from Anywhere
- Remote live view and playback
- Get instant notification on events
- Audio monitoring
- Easily and securely share access to other members
Smart Playback with Pre-installed 4GB HDD
- 4K Ultra HD recording
- Pre-installed 4TB surveillance grade HDD for local storage
- Up to 16ch synchronous playback
- Record and playback with audio
- Super efficient smart & event playback
Night ColorVu
Get the ultimate night vision experience with our camera's revolutionary Night ColorVu technology, delivering vivid full-color nighttime video with the longest range on the market.
Application

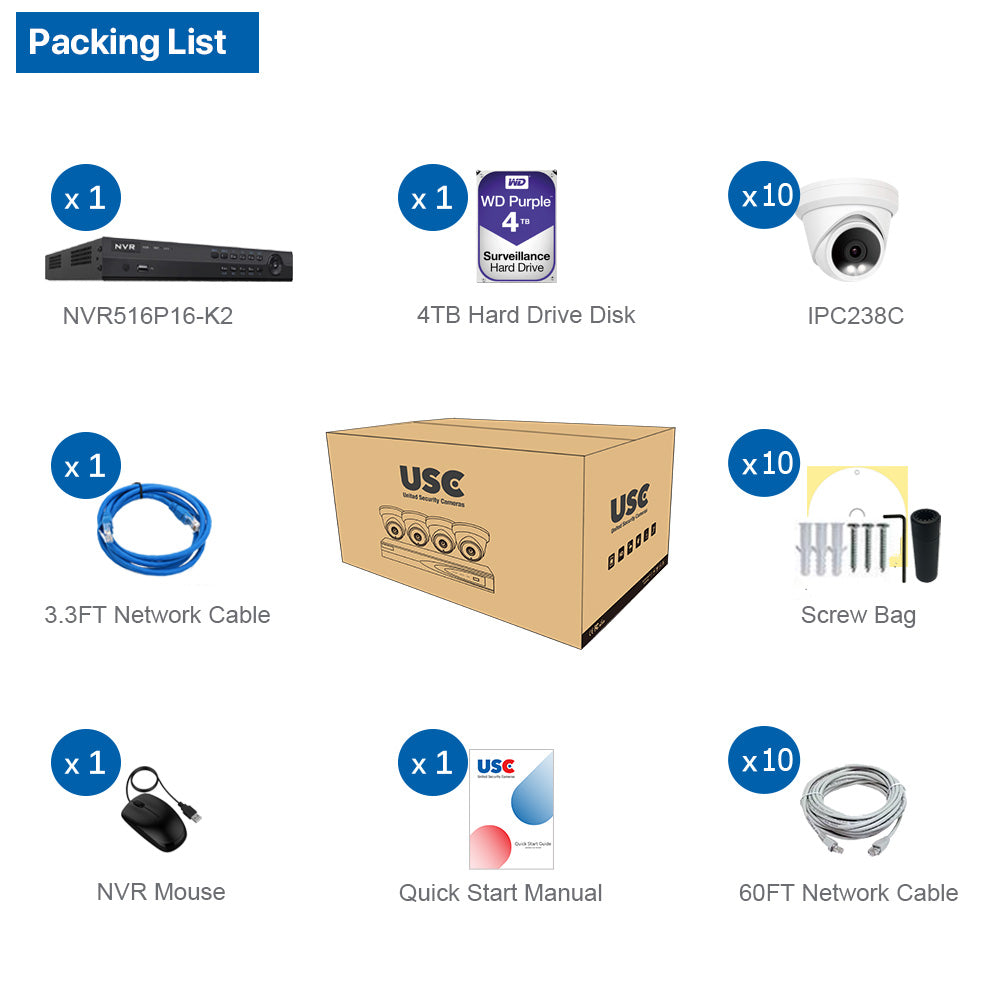

What's Included?
LINOVISION 16CH Security Camera System Specifications
| NVR Specifications | Camera Specifications | |||
| NVR | 16ch H.265+ 4K PoE NVR | Camera Sensor | 1/2.8" Sony IMX415 Sensor | |
| Video Input | Up to 16 PoE IP Cameras, plug-n-play | Resolution | 20fps@8MP(3840x2160)/30fps@6MP(3072x2048)/5MP/3MP/1080P/720P | |
| Incoming Bandwidth | 160 Mbps | Lens | Fixed 2.8mm lens, wide view angle 110° | |
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/1080P | Infrared Night Vision | 100ft, 18PCS IR LEDs | |
| Display Output | 1x HDMI at 4K (3840 × 2160)/2K/1080P; 1x VGA at 1080P | 24/7 Night ColorVu | 100ft, 2PCS Soft & Warm Supplemental Light | |
| Audio | 1-ch Audio input, 1-ch Audio output (RCA Interface) | Min.Illumination | 0.01 Lux; 0 Lux with IR ON. | |
| Playback | 16-ch Synchronous Playback | Audio | Built-in Microphone (One way audio) | |
| Storage Capacity | Pre-installed 4TB Surveillance Grade HDD. Max. 20TB capacity with 2 SATA Slots | AI Function | Human body / Vehicle Classification | |
| Remote Access | WEB, PC based VMS Software, Mobile App (Guarding Vision, Hik- Connect) | Weatherproof | IP67 & IK10, Metal Housing | |
| Dimension | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") | Power Input | PoE or DC12V | |
