Description

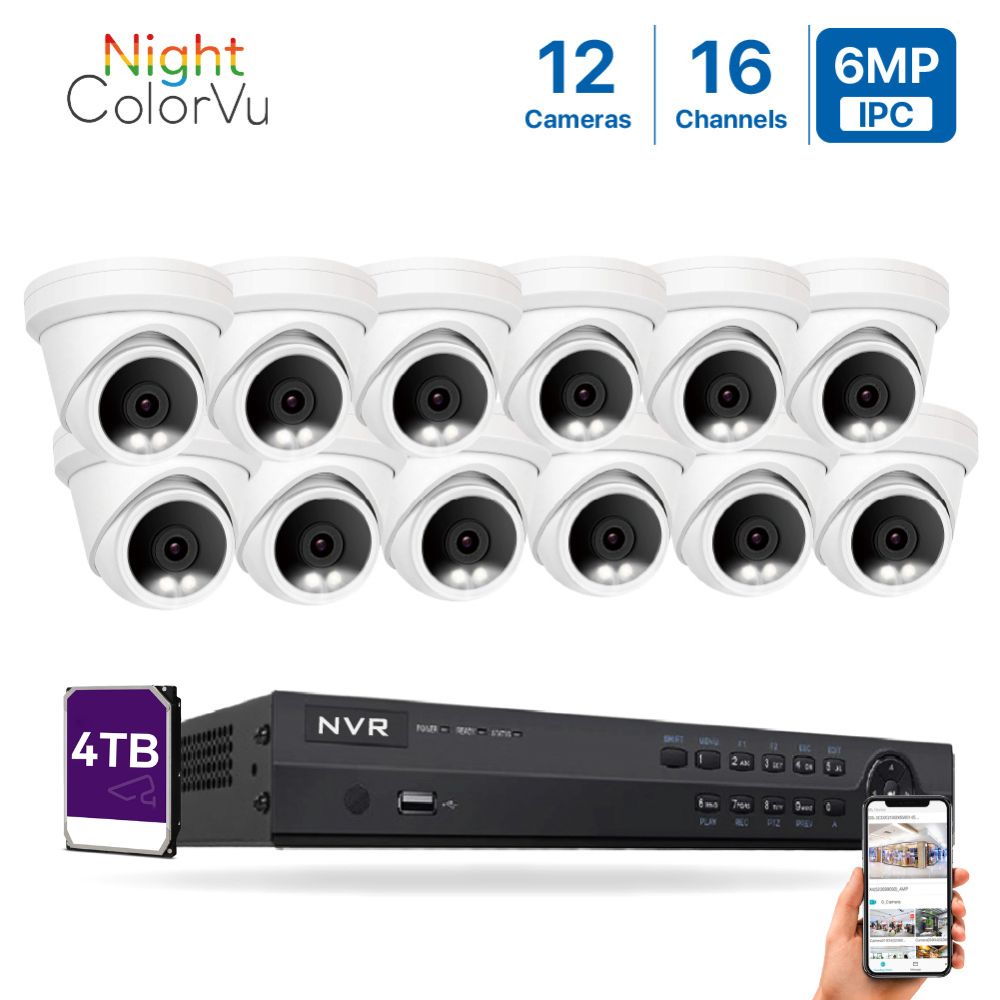

- 4K 16CH Ultra HD NVR with 4TB HDD, H.265+ Compression, 12 Cameras
- 6MP Superior Image Quality
- PLUG-n-PLAY
- Free Mobile APP with Cloud
- IR Range Up to 100ft
- Live View and Realtime 24/7 Continuous Recording

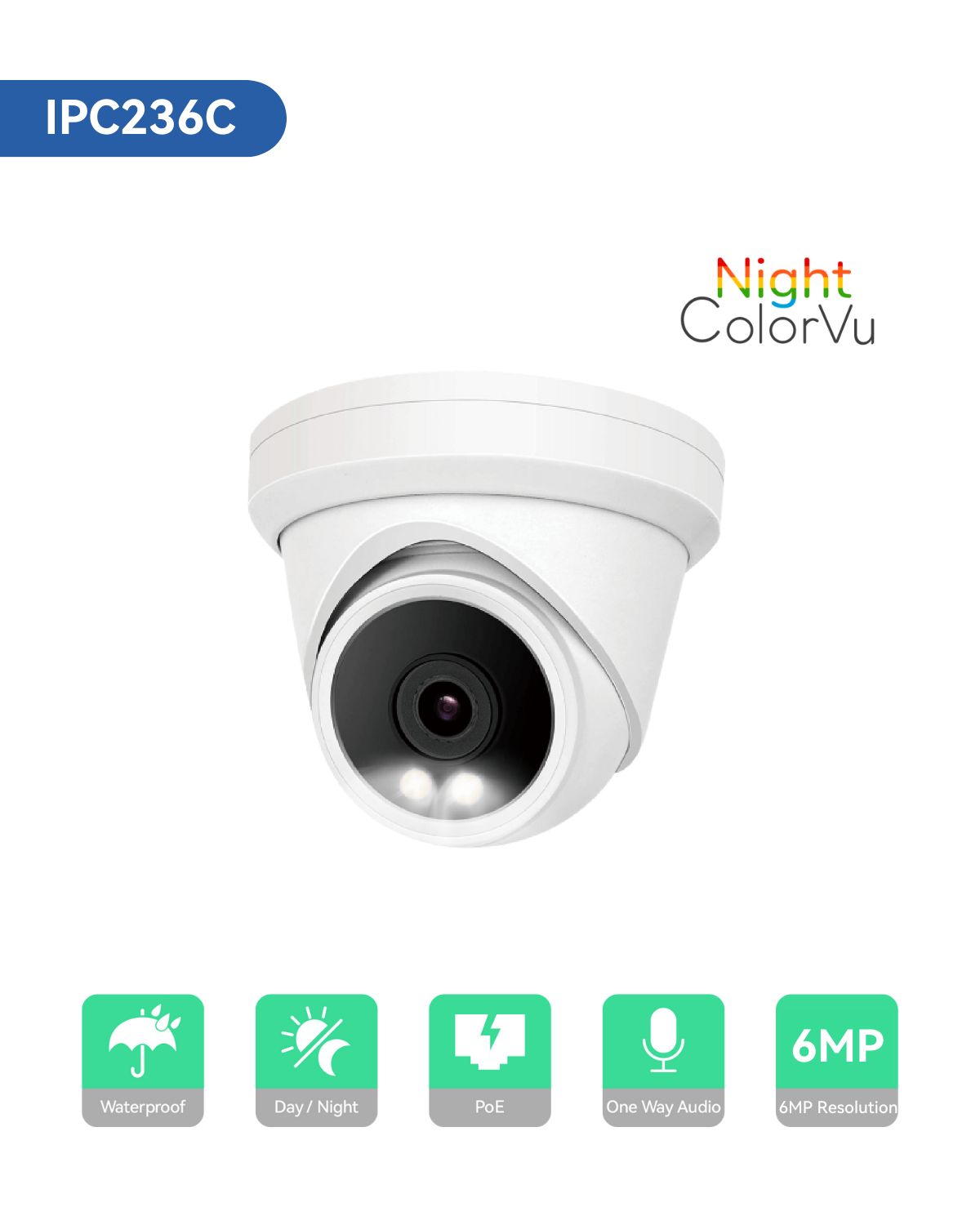

4K Ultra HD Video
- 110 ° wide angle view, fixed 2.8mm lens
- Sony IMX415 sensor for ultra HD day / night monitoring
- For both Indoor and Outdoor installations
- Built-in microphone for one-way audio
Remote Access from Anywhere
- Remote live view and playback
- Get instant notification on events
- Audio monitoring
- Easily and securely share access to other members
Smart Playback with Pre-installed 4GB HDD
- 4K Ultra HD recording
- Pre-installed 4TB surveillance grade HDD for local storage
- Up to 16ch synchronous playback
- Record and playback with audio
- Super efficient smart & event playback
Night ColorVu
Get the ultimate night vision experience with our camera's revolutionary Night ColorVu technology, delivering vivid full-color nighttime video with the longest range on the market.
Application

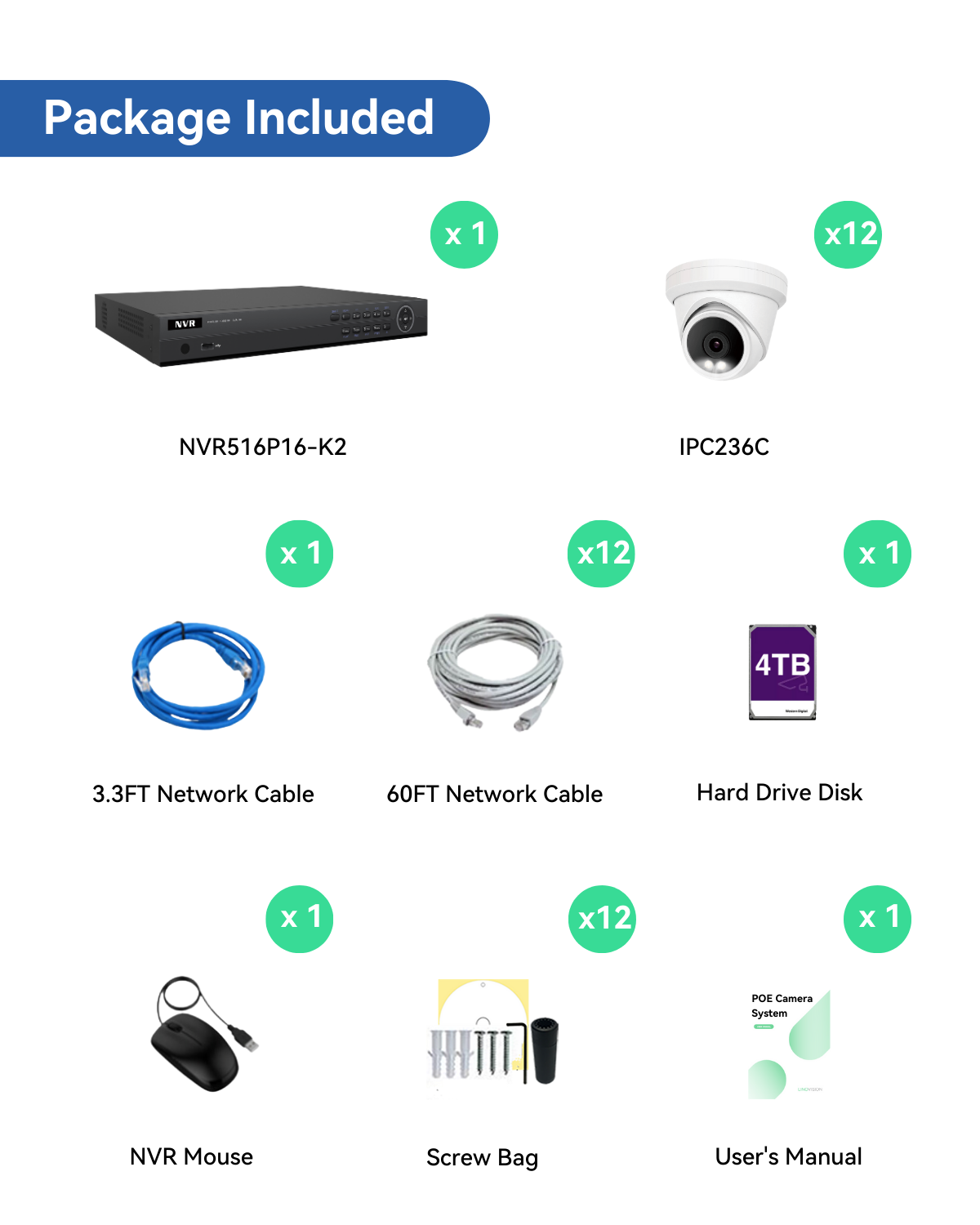

What's Included?

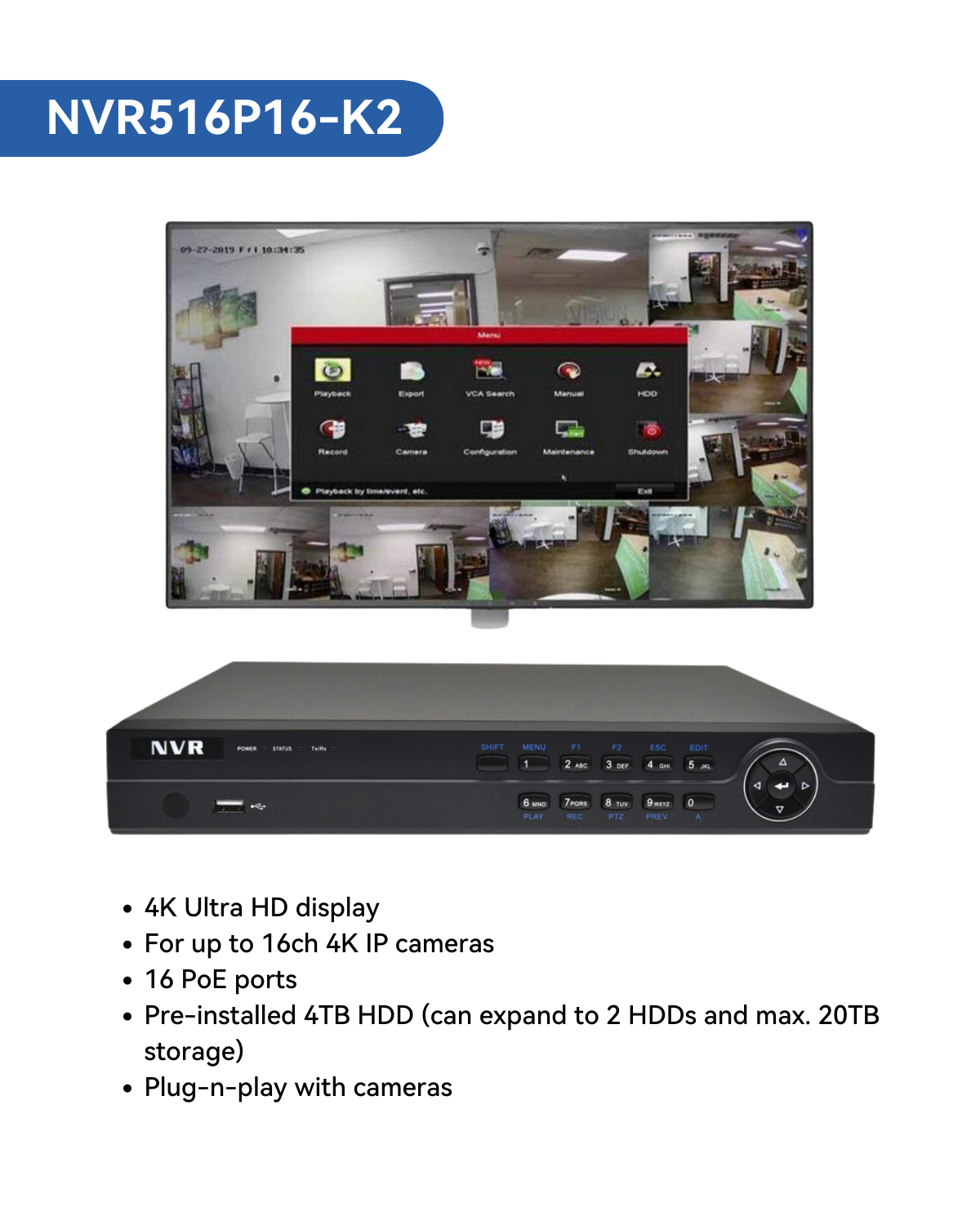

LINOVISION 16CH Security Camera System Specifications
NVR Specifications | Camera Specifications | |||
NVR | 16ch H.265+ 4K PoE NVR | Camera Sensor | 1/2.8" Sony IMX335 Sensor | |
Video Input | Up to 16 PoE IP Cameras, plug-n-play | Resolution | 25fps@6MP(3072x2048)/5MP(2592x1944)/30fps@4MP | |
Incoming Bandwidth | 160 Mbps | Lens | Fixed 2.8mm lens, wide view angle 110° | |
Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/1080P | Infrared Night Vision | 100ft, 18PCS IR LEDs | |
Display Output | 1x HDMI at 4K (3840 × 2160)/2K/1080P; 1x VGA at 1080P | 24/7 Night ColorVu | 100ft, 2PCS Soft & Warm Supplemental Light | |
Audio | 1-ch Audio input, 1-ch Audio output (RCA Interface) | Min.Illumination | 0.01 Lux; 0 Lux with IR ON. | |
Playback | 16-ch Synchronous Playback | Audio | Built-in Microphone (One way audio) | |
Storage Capacity | Pre-installed 4TB Surveillance Grade HDD. Max. 20TB capacity with 2 SATA Slots | AI Function | Human body / Vehicle Classification | |
Remote Access | WEB, PC based VMS Software, Mobile App (Guarding Vision, Hik- Connect) | Weatherproof | IP67 & IK10, Metal Housing | |
Dimension | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") | Power Input | PoE or DC12V |
