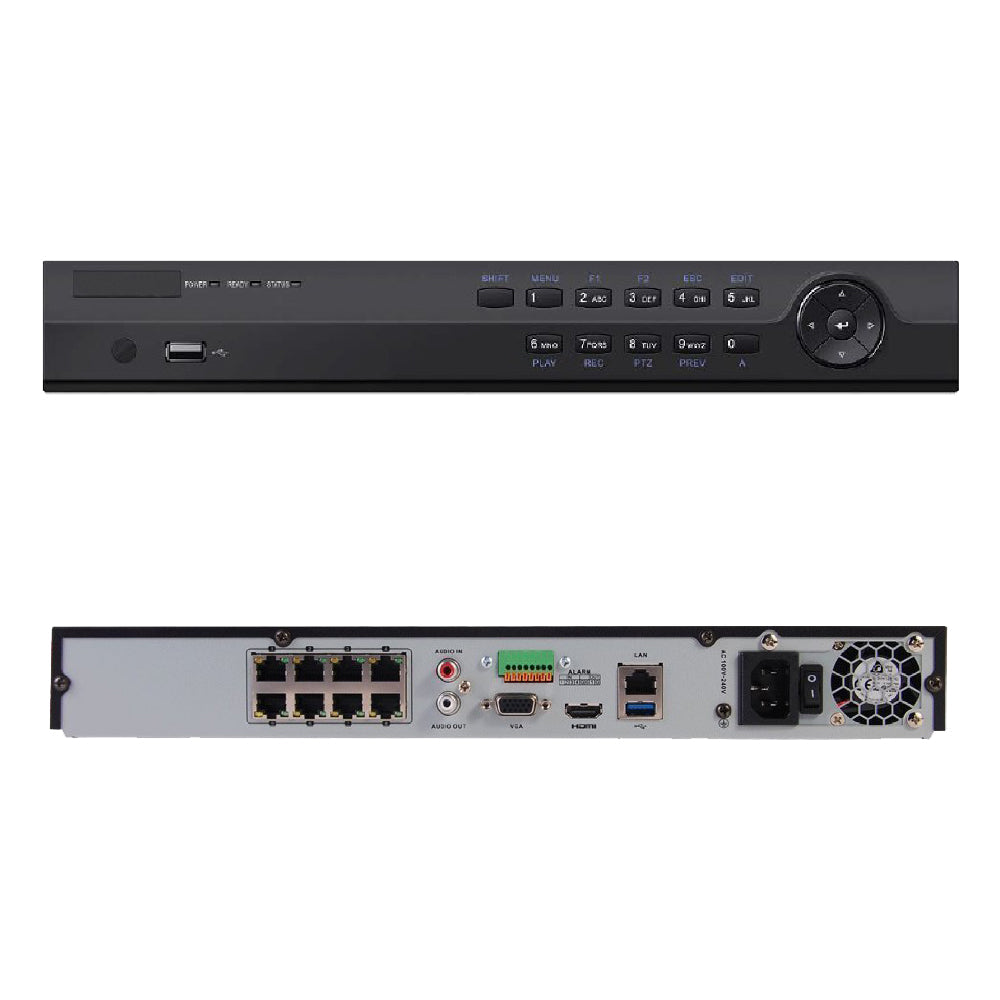

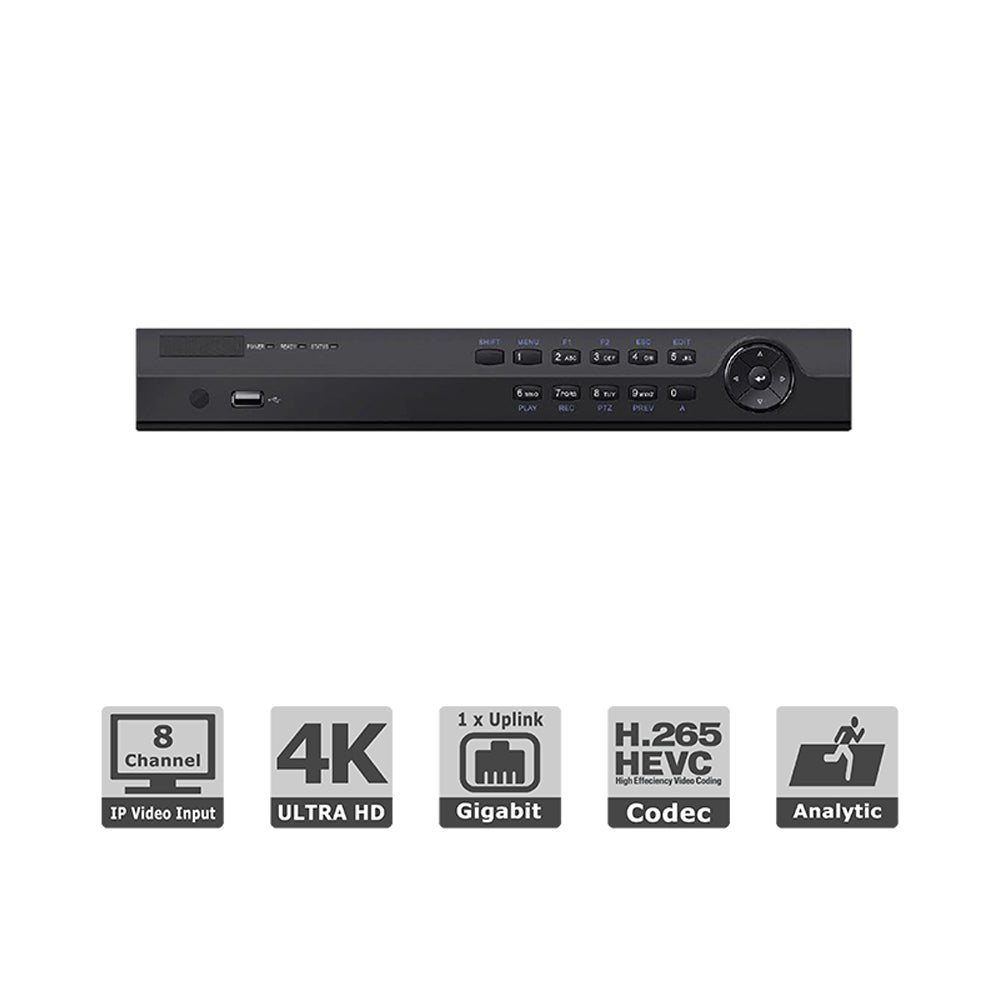

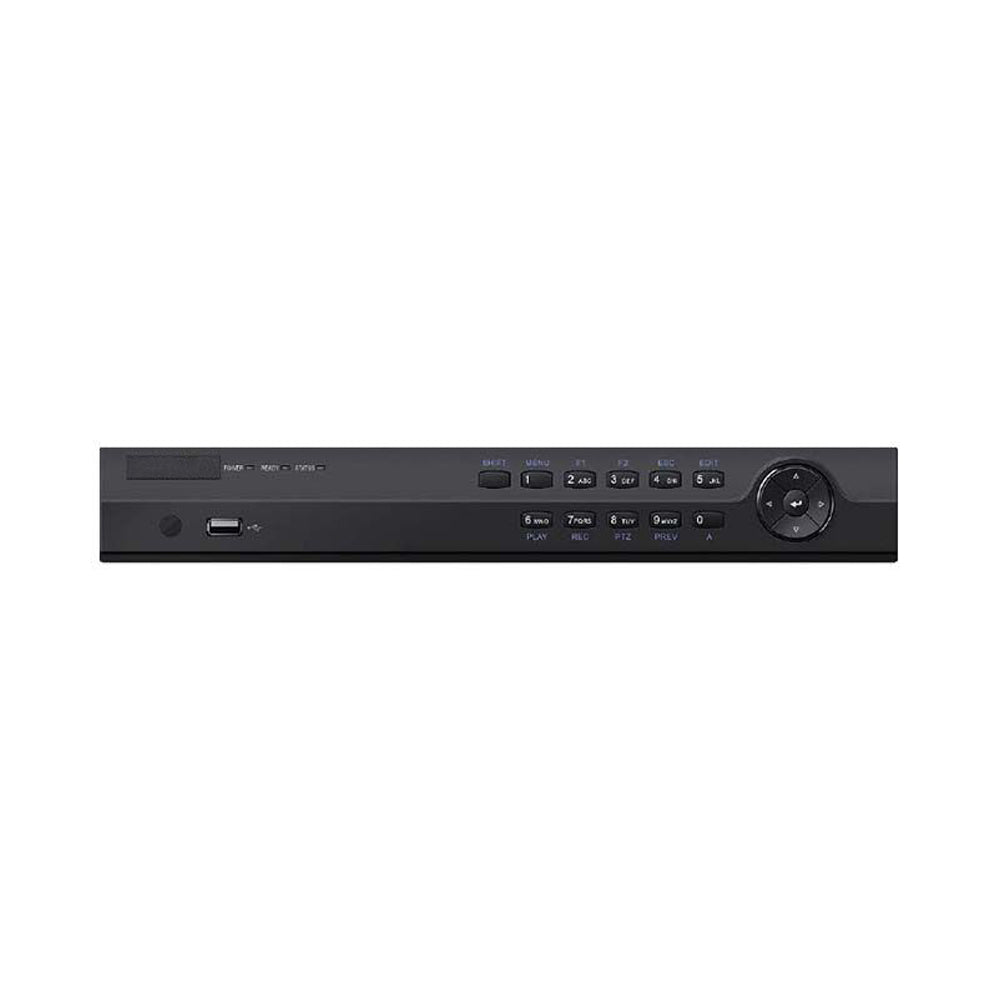

8CH 4K NVR 8 Channel Network Video Recorder 8Port PoE H.265 max 2 HDD, 1U case

SKU: NVR508P8-K2

Sale price$219.00 USD
In stock


  • Support 4K display
  • 8-ch IP cameras input, max 8MP resolution
  • 80Mbps incoming bandwidth
  • 8-ch@1080P 30fps decoding capability
  • Support 2 SATA with 6TB HDD for each
  • Support 8 independent POE network interfaces
  • Support various VCA detection alarm and VCA search
  • Support H.265/H.264/MPEG4 video formats
Video/Audio Input
IP video input 8-ch
Two-way audio input 1-ch, RCA (2.0 Vp-p, 1kΩ)
Incoming bandwidth 80Mbps
Outgoing bandwidth 160Mpbs
Video/Audio Output
HDMI Output 1-ch, resolution: 4K(3840 x 2160)/60Hz, 4K(3840 x 2160)/30Hz, 1920 x 1080P/60Hz, 1600 x 1200/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Recording Resolution 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
VGA Output 1-ch, resolution: 1920 x 1080P/60Hz, 1280 x 1024/60Hz, 1280 x 720/60Hz, 1024 x 768/60Hz
Live view / Playback 8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability 2-ch @ 4K, or 8-ch @ 1080p
Hard Disk
SATA 2 SATA interfaces for 2HDDs
Capacity Up to 6TB capacity for each HDD
External Interface
USB Interface 2, USB2.0
Alarm In 4-ch
Alarm Out 1-ch
Interface 8 independent 10/100 Mbps PoE Ethernet interfaces
Power Supply 100 to 200 VAC
Consumption(without hard disk and POE) Less than 15 W
Working Temperature +14 ºF to + 131 ºF
Working Humidity 10 % to 90 %
Chassis: 15.2 Inch
Dimensions 15.2" x 12.4" x 2.0"
Weight(without HDD) 6.6 lbs
